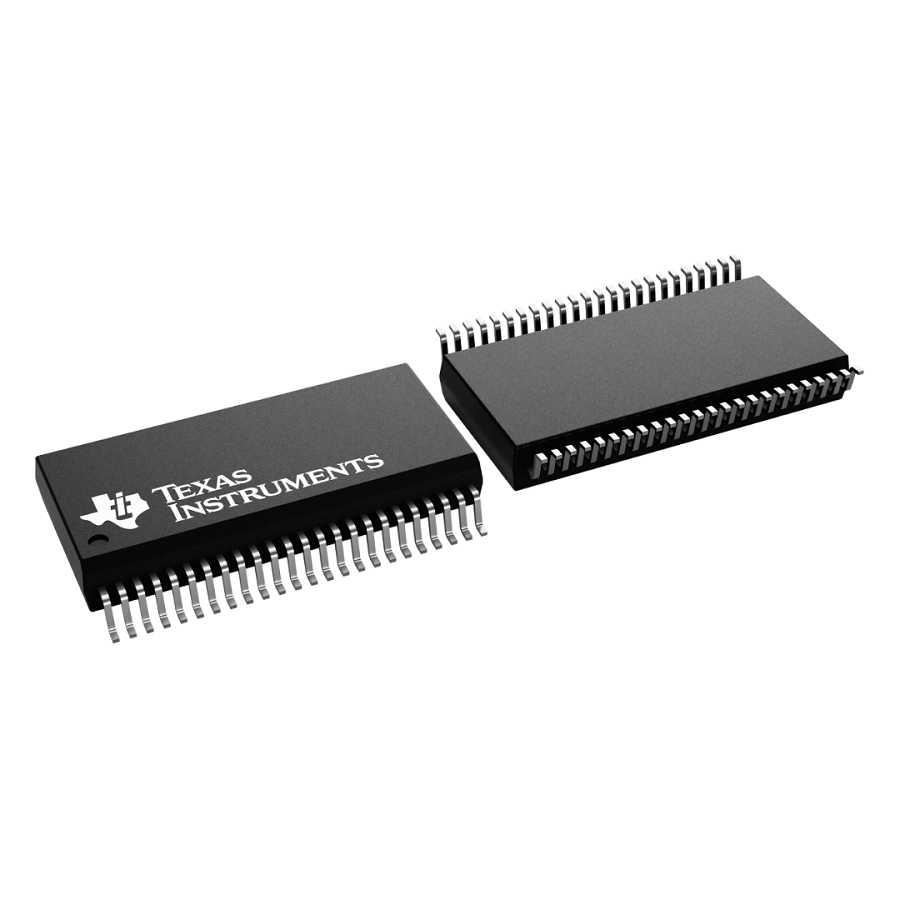

SN74LVC16T245DL
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74LVC16T245DL
Datasheet:
Description:
Voltage Level Shifters SSOP-48 SMD/SMT 3-State 1.65 V to 5.5 V 1.65 V to 5.5 V
| Parameter | Value |
|---|---|
| Length | 15.88 mm |
| Width | 7.49 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 48 |
| Height | 2.79 mm |
| Packaging | Tube |
| Thickness | 2.59 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Number of Elements | 2 |
| Number of Circuits | 2 |
| Output Type | 3-State |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.65 V |
| Number of Channels | 16 |
| Number of Bits | 16 |
| Turn-On Delay Time | 32.2 ns |
| Quiescent Current | 20 µA |
| Propagation Delay | 23.8 ns |
| High Level Output Current | -32 mA |
| Low Level Output Current | 32 mA |
| Logic Function | Transceiver, Translator |
| Direction(Counting Sequence) | Bidirectional |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
| Channels per Circuit | 8 |
| Voltage - VCCB | 1.65 V to 5.5 V |
| Voltage - VCCA | 1.65 V to 5.5 V |
Stock: 6988
Distributors
pcbx
pcbxUnit Price$1.48330
Ext.Price$1.48330
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.48330 | $1.48330 |
| 10 | $1.11397 | $11.13970 |
| 25 | $1.01566 | $25.39150 |
| 50 | $0.96210 | $48.10500 |
| 100 | $0.91136 | $91.13600 |
